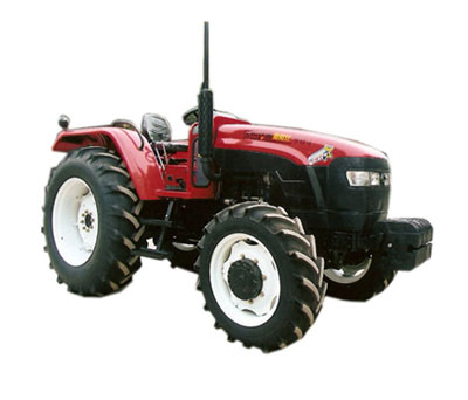

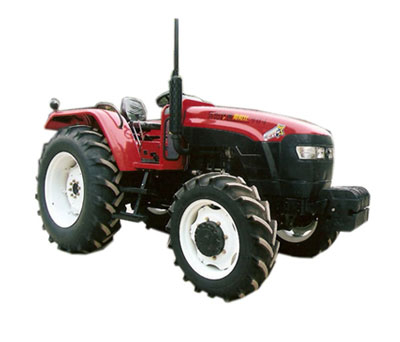

LYH820/LYH860/LYH900 wheeled tractors

LYH820/LYH860/LYH900 wheeled tractors

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 100 Units per Month
  • Port: qingdao
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Unit/Units
Verified Supplier Luoyang Lutong Heavy Industry Machinery Co.,Ltd
| Factory
Experience:2004-11-01
Visit Factory
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  20
  • Place of Origin:  luoyang
  • Brand Name:  lutong
  • Model Number:  LYH820/LYH860/LYH900
  • Weight: 800.000 kg
That the LYH824/LYH864/LYH904 road sun makes 80 series wheeled tractors red- is that Luoyang Lutong agriculture equipment Ltd. acts on self's own grinding hair's having the horizontal in the homeland same kind model wheeled tractor in the lead. The main characteristic has: Adopt the East is red 4110 diesels , reliability are high , have bigger moment of torsion reserve system; Handle pair of effect clutches on one's own; The speed change box archives place is 4 X (2 + 1); Detached driving force of postposition exports a device , drive balances , bears the weight of a force big; The entire hydraulic pressure front wheel adopt the independent oil road gets lost , gets lost nimble , reliable , saves labour; Adopt quiet liquid
Tractor model LYH820/LYH860/LYH900
Pattern
 		4×4(Two turn actuation)
Outlook sizemm Long(Including rear suspension) 4396(Including pretage)
Width 2038
High (to air vent) 2810
Spread of axies(mm) 2195
Front wheel tread
(mm) 		1610
Rear wheel tread(mm) 1620-2020(Exwork1620)
Smallest gully(mm) 379(Front under driving axle along)
Changes radius (mm) unilaterally not to apply the brake 5.6
Structure quality Belt cab vehicle typ 3750
Does not have the cab vehicle type 3500

Quality assignment

Front wheel belt cab vehicle type 1640
Does not have the cab vehicle type
 		1600
Trailing wheel belt cab vehicle type 2350
Does not have the cab vehicle type 2140
Smallest use quality (kg)
Belt cab vehicle type 3990
Does not have the cab vehicle type 3740
Counterweight
First counterweight Biggest310
Latter counterweight Biggest480
Fixed force of traction (KN) 19/19.9/20.8
Engine model 4108T82/4108T86/4110T90
Demarcation power (KW) 60.3/63.2/66.2
Files number 16F 8R (elects to install crawling files) or 8F 4R
Speed range 0.46-36.9
Power transmission coupling Monolithic, the dry type, the butterfly-shaped spring contract, the independent operation, the double-acting type coupling
Gear box The host vice-speed change shifts gears for the straight meshing wrap
Rear axle of car central rotation Spiral bevel gear
Differential device Closed type, 4 planet bevel gears
Differential lock Meshing model
Latter final transmission The single stage planet gear type, sets outside the rear both sides
In front of first driving axle central transmission Spiral bevel gear
First differential device Closed type, 2 planet bevel gears
First final transmission A single stage planet gear type
Transfer case Straight tooth cylindrical gears belt transmission shifting mechanism
Front wheel tire specification 11。2-24
Trailing wheel tire specification
 		16.9-34/13.6-38(Paddy wheel)
Changes the form
 		The independent oil duct, the entire hydraulic pressure front wheel changes
Travel brake The static hydraulic pressure, the disc type, under the human control sets at the footboard
Parking brake
 		The handle operation, the multi-rubbing surface machinery contracts the oil bath type
Ploughs the deep control mode The position control, the fluctuation control (elects to install strength position integrated control)
After system biggest lifting capacity (KN) (point of suspension 610m place)
 		Being bigger than16
Suspension unit
 		After three is hanging
Dynamic output speed of spindle (r/min) Postpositioned free standing 760/1000
Draw gear form Suspends the type draw link adjustable, the draw link position
  • Size:  20
  • Place of Origin:  luoyang
  • Brand Name:  lutong
  • Model Number:  LYH820/LYH860/LYH900
  • Weight: 800.000 kg
