Product Details
- Size: 41
- Place of Origin: luoyang
- Brand Name: lutong
- Model Number: LTS220H
- Weight: 20000.000 kg

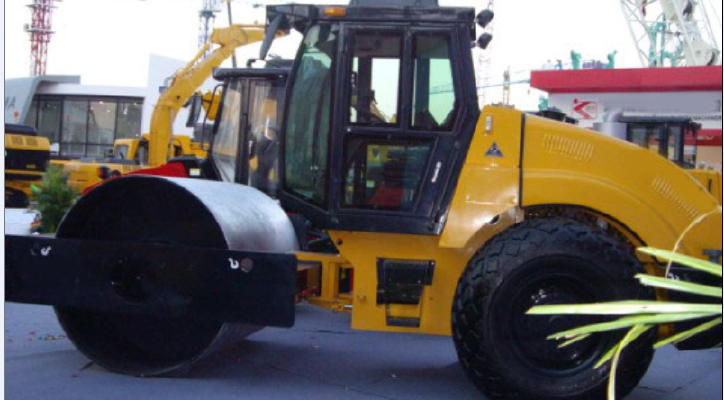

| Hydraulic double driver vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and hegh effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can effect good compaction in cohesive material, There-fore the machine an ideal equipment for expressway. mining road, embankment, sea port and industrial sites. Main Features ▲Power System: CUMMINS B-series extra-pressure diesel engine, huge power man coeffciency, complicable for the operating condition above 4000 meters altitude. ▲Full hydraulic and drive, changable frequency changable amplitude, articulated steering, the advanced two speedless changes, Break-off oil system safe and reliable for the braking. ▲Streamline outline, circular windshield glass and curvy hood form a unique style. ▲Equipped with padfoot or removal padfoot as optionHydarulic pump and vibrating motor are of thr 90 series made by American manufacturer SAUER or German munufacturer REXROTH. |
| Main Technical Parameters LTS220H LTS218H LTS216H LTS214H Operating mass Kg 20000 16000 16000 14000 Static linear load N/cm 460 415 378 342 Vibration amplitude mm 2.0/1.0 2.0/1.0 2.0/1.1 1.8/0.9 Vibration frequency Hz 28/35 28/35 28/35 29/35 Centrifugal force kN 360&220 340&200 320&180 290&160 Travel speed km/h 11 11 11 12 Grade ability % 30 30 30 30 Turning radius mm 6500 6500 6500 6500 Overall dimension mm 5930x2300 x3020 5930x2300 x3020 5860x2280 x3020 5860x2280 x3020 Vibration round width mm 2100 2100 2100 2100 Wheel base mm 3160 3160 3160 3160 Ground clearance mm 472 472 472 472 Diesel model kW 132 132 110 73.5 Diesel power 6BTA5.9 6BTA5.9 6BT5.9 6BTA5.9 |
